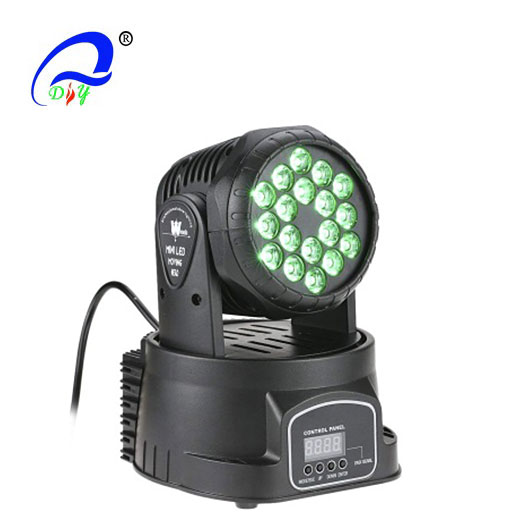

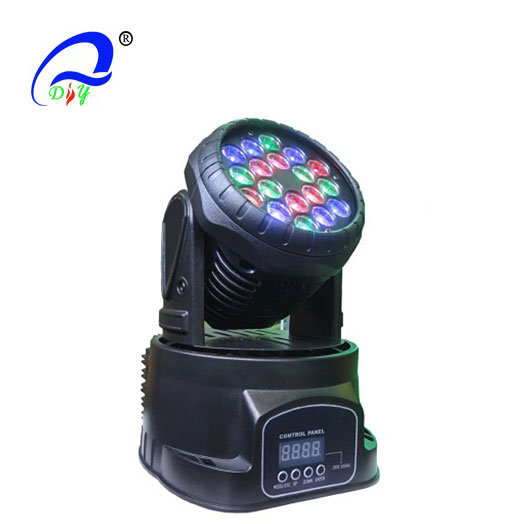

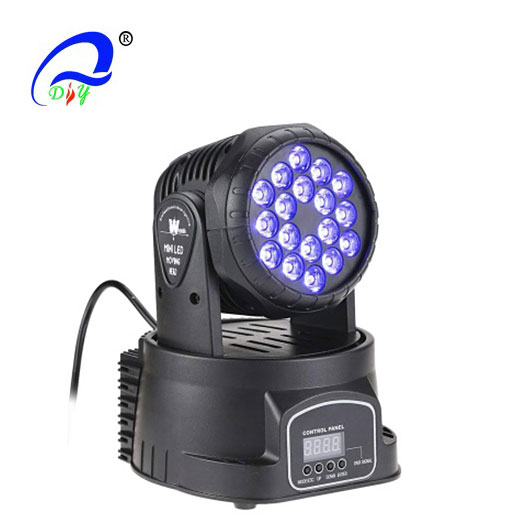

PL14A  18PCS*3W  LED  Wash  Moving Head Light
Model No.: PL14A
Place of Origin:China
Delivery time: 3-4 weeks
Supply ability: 1000PCS/week
Payment way: T/T, L/C, D/P, Western Union

Description: This mini moving head wash light has small shape, it's easy to the installation and operation. Equipped with 18PCS high brightness 1W/3W LED lamps. The scan is very fast, and positioning accuracy.this machine comes with using time display and intelligent temperature control display to ensure the lamp life.
Scan WeChat QR code
to learn more
Product Advisory Messages
Parameter
Demonstration
Video

Power Supply: AC100-240V, 50-60Hz
Power Consumption: 70W
Light Source: 18PCS*3W high brightness leds LEDs, (R: 6, G: 6, B: 6)

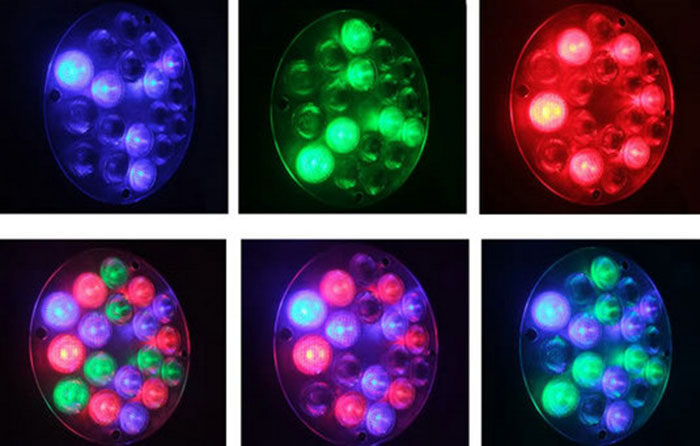

Effect:  RGB color mixing;
            Variable electronic strobe;
            Variable electronic dimmer (0~100%);
            Vector speed channel for pan/tilt, RGB color mixing and color macros;
            Built-in movement macros via master/slave or DMX;
            User-selectable basic or advanced operating modes;
            Compact and light weight;
            LED display menu with invert;
            Display auto on/off;
            Pan/tilt invert option;
            Pan cooled.
Beam Angle: 25 degree.
Strobe: effect with 1~25flashes per second and pulse effect
Pan: 540°,360°,180°selectable
Tilt: 270°,180°,90°selectable
Fuse: 2A, 250V
Preset program: 8 built in programs can be called up via DMX controller
Control mode: DMX512, master-slave and sound activated controllable or auto operation
DMX Channel: 8/13 DMX Channels

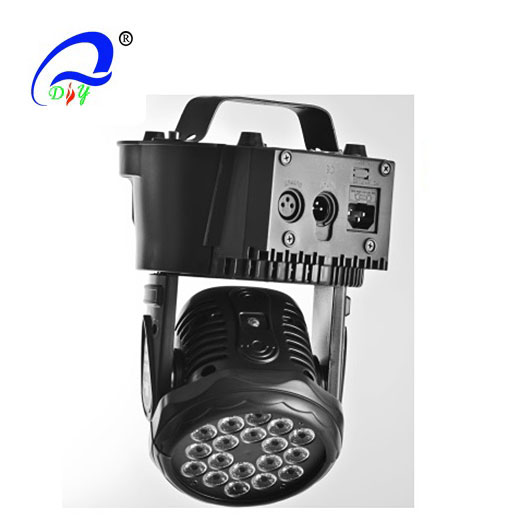

Connectors: 3 -pin XLR signal connector input and output
Control Panel: Screen LED display which can display both sides, can choose “show/ shut”
Function: RGB color mixing system,can reach unlimited color
Cooling System: Low noise and efficient FAN cooling system
Carton Package:
Body size: 225*225*270mm
Carton box package size: 265*220*270mm (1pc/carton)
N.W/G.W: 3.5kg/4kg
Carton box package size: 280*280*370mm (2PCS/carton)
N. W/G. W: 7.2kg/9kg
