Model No:DMX3
Place of Origin:China
Delivery time: 3-4 weeks
Supply ability: 1000PCS/week
Payment way: T/T, L/C, D/P, Western Union
Description:Specially designed to control the various scanners. High speed MCU proceed the precise control to achieve 16Bit X/Y movement. Up to 32 scanners may be connected with a maximum of 16 channels each. Multi scenes and multi chase programs can be operated at the same time, and 32 scanners can be selected simultaneously.Two groups of DMX 512 signals and is adapted for wide range of power voltage.

Power Supply: AC90-240V, 50/60Hz
Power Consumption: 50W
The total number of channels: 512
Computer controlled lights: 32pcs 16ch lights
Programs: 1600 lamp programs
Connector: XLR-D3F*2
Features:
1.DMX512/1990 standard DMX control channel 512-way with an independent optical isolator output driver window with anti-2000VDC electrical shock.

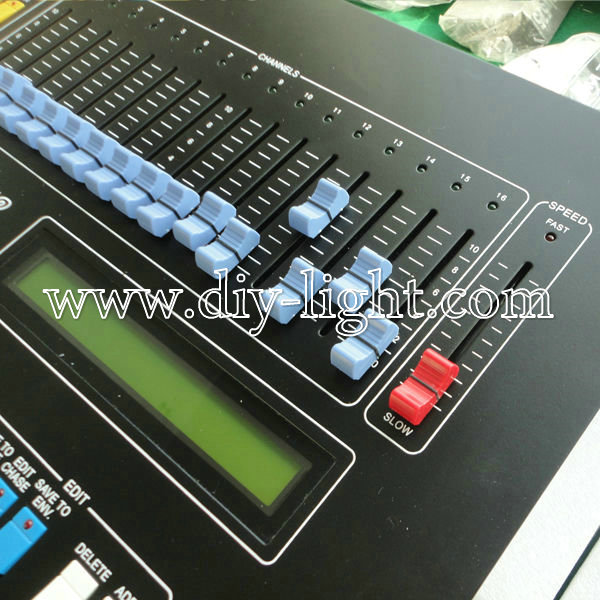

2.Section 32 16-channel control of the computer light.With a large backlit LCD display screen used to display various operating parametes,16-channel fader, controlling the speed of a putt.
3.1600 lights go procedures for storage capacity,take the lamp 48 procedures, each with 100 step-by-step procedures
4.the speed of each step,set up independently graded parameters.Optional music sync or manual speed control.Lights go putt
5.in the match rate,the process step-by-step from the 0.03s-180s,At the same time,eight to go light to run the procedure,48 scenes and 32 computers an the same time manually running lights(lantern)the release of specific channle functions.
6.16BIT computer lights X/Y control accuracy
7.15 Environmental key,quick to call a different scene and take the lights,manually run the portfolio
8.Music from the microphone line inputs or built-in sound knowledge,data
rutention shutdown
9.Green-built high-performance
Carton package:
Dimension: 585*490*235mm
N.W: 7.5kg       G.W: 8kg
